WMS Layer

Icon Map Pro has the ability to use tiles provided by a WMS server overlaid on top of the background map. The server must use an https address to work within Power BI, and serve layers in EPSG:3857. You can display up to 5 WMS layers.

Authentication​

Icon Map Pro offers multiple methods of authenticating against WMS servers:

None​

For public access sources that do not require any authentication

ArcGIS​

For ArcGIS hosted WMS layers - your ArcGIS token will be used. Ensure that ArcGIS authentication has been configured before configuring the layer.

Basic (Username and Password)​

For servers configured with basic authentication using a username and password

alt text

Token / API Key in URL​

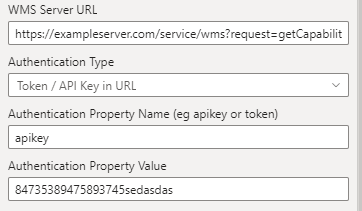

This is for servers where a token or API key is passed in the URL. For example if your server's example URL looks like https://exampleserver.com/service/wms?request=getCapabilities&apikey=84735389475893745sedasdas you should enter 'https://exampleserver.com/service/wms?request=getCapabilities' in the WMS Server URL textbox, 'apikey' in the Authentication Property Name textbox and '84735389475893745sedasdas' in the Authentication Property Value textbox.

alt text

Token / API Key in Header​

This is for servers where a token or API key is passed in the HTTP headers.

alt text

Automatic Configuration​

If the server has CORS enabled, then Icon Map Pro will be able to interrogate the server and return the available layers.

For example, to show layers from the Government of Canada, we can paste the URL in either of the following formats:

https://maps-cartes.services.geo.ca/server2_serveur2/services/StatCan/multiple_deprivation/MapServer/WMSServer?request=GetCapabilities&service=WMS
https://maps-cartes.services.geo.ca/server2_serveur2/services/StatCan/multiple_deprivation/MapServer/WMSServer

And then select the required layer:

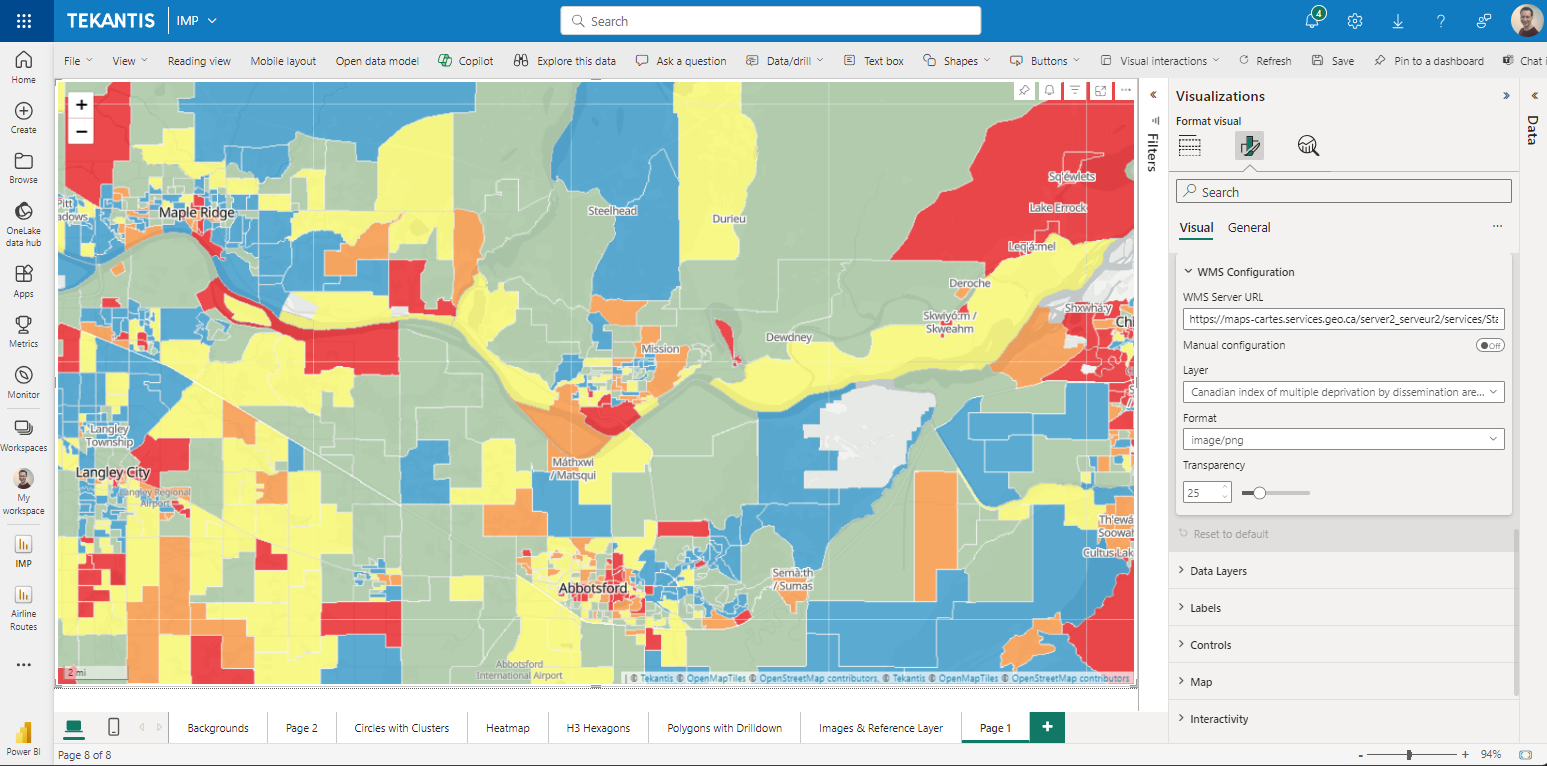

Canadian Index of Multiple Deprivation

Manual Configuration​

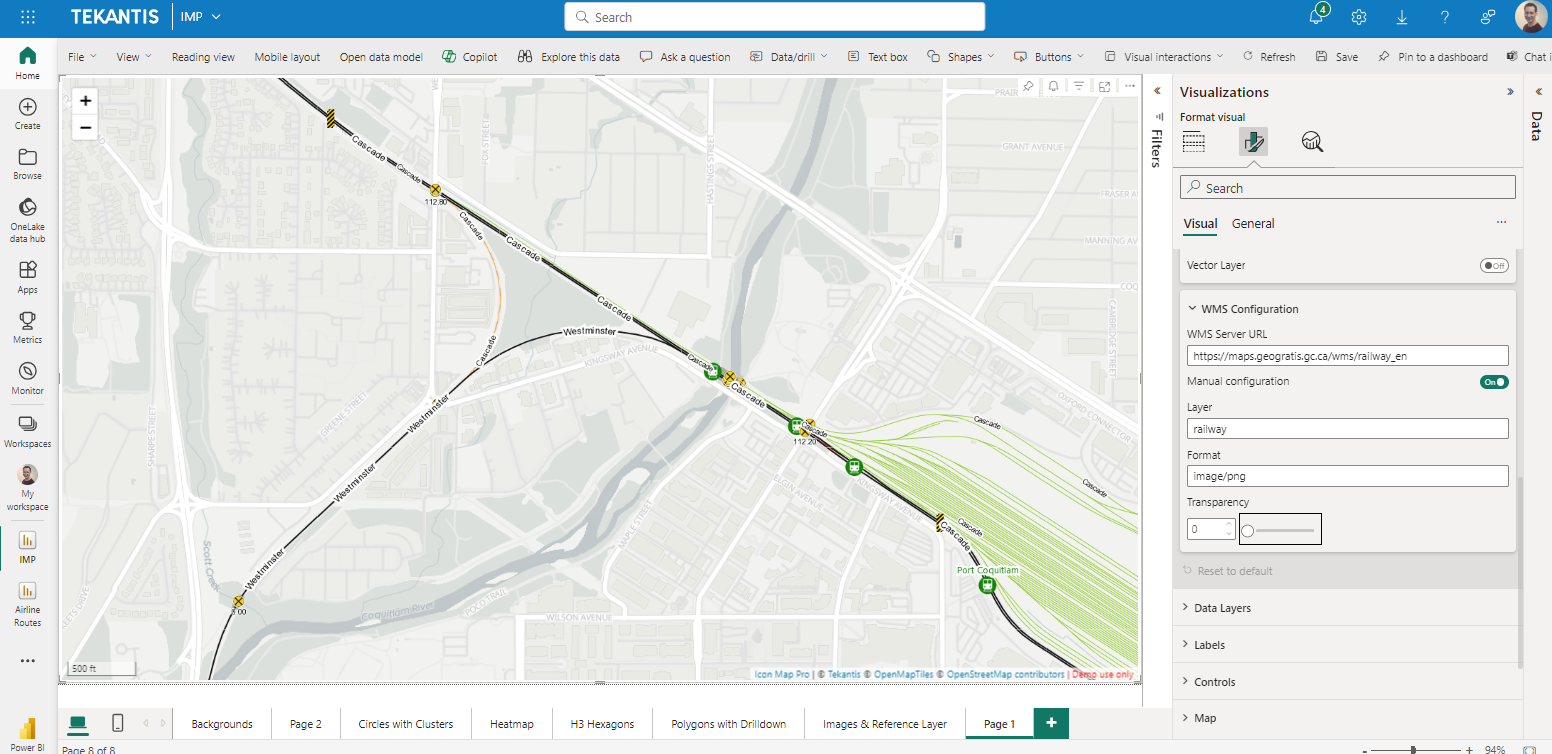

If the WMS server hasn't been configured for CORS, then toggle the Manual Configuration toggle and enter the appropriate values manually. In this case showing the railway network of Canada.

Manual Configuration

Layer​

The name of the layer as specified in the capabilties.xml

Format​

The format of the output. Eg image/png

Style​

Specify a specific style

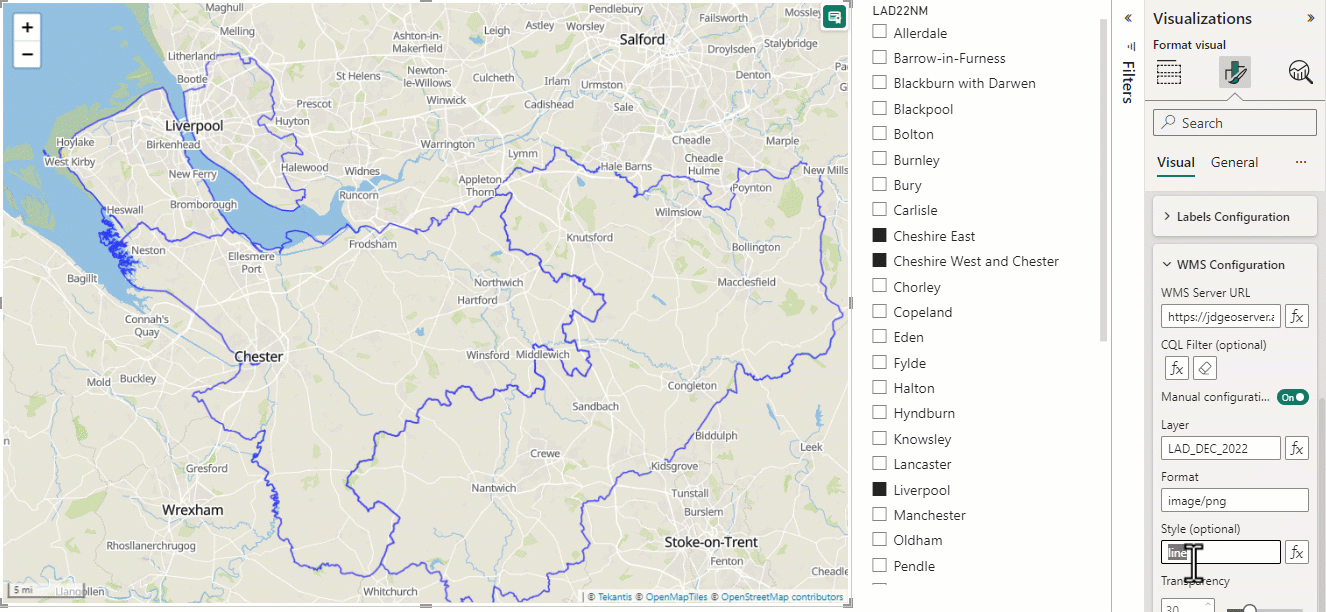

Specific Style Configuration

Custom Parameter Name and Value​

If you need to pass any other values on the URL, for example for a URL such as https://exampleserver.com/service/wms?request=getCapabilities&date=2024-03-01, do not include these in the WMS Server URL, instead enter date in the Custom Parameter Name, and 2024-03-01 in the Custom Parameter Value textbox.

alt text

CQL Filter​

CQL Filter

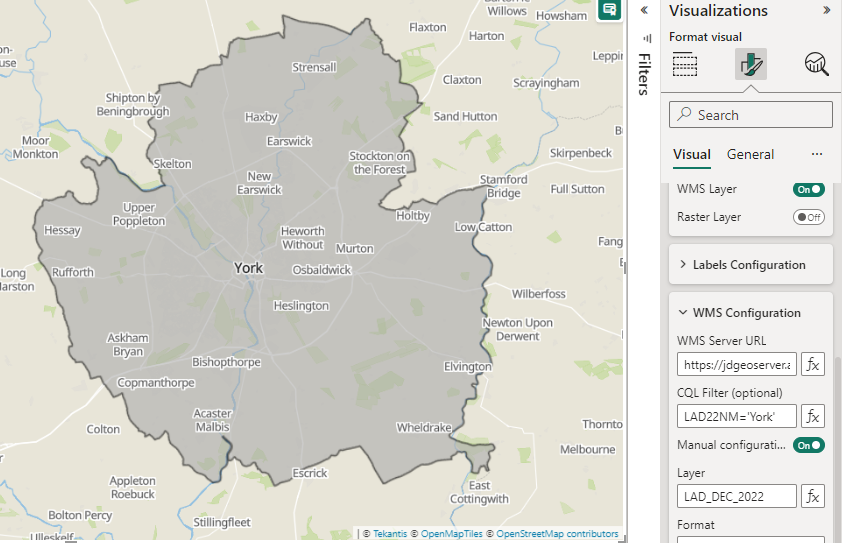

For supported servers, such as GeoServer, the CQL Filter allows you to dynamically determine which WMS items are displayed. CQL expressions should be in the following format: [Property Name]=[Property Value]. Text items should be enclosed in single quotes. Eg:

Name='York'

You can use DAX expressions to dynamically generate the CQL filter from values in your data, or selected slicer values. For example:

CQLFilter = "LAD22CD IN (" & CONCATENATEX( DISTINCT(Geography[LAD22CD]), "'" & Geography[LAD22CD] & "'", ", ") & ")"

LayerDefs and Query​

If using an ArcGIS hosted WMS server, instead of the CQL Filter option, you will instead have Query Filter and LayerDefs Filter options.

alt text

You can use these to filter WMS layers based on their ArcGIS metadata and properties. For further information, consult the ArcGIS documentation.

Visible​

Whether the layer should be shown or not. This can be set using conditional formatting ('yes' or 'no') to dynamically display a layer according to your data context or a Power BI slicer.

Minimum Zoom​

The zoom level at which the layer starts to be shown.

Maximum Zoom​

The level at which the layer stops being shown.

Z-Index​

A number representing the order of the layer relative to other Icon Map Pro layers.

Number of Additional Levels​

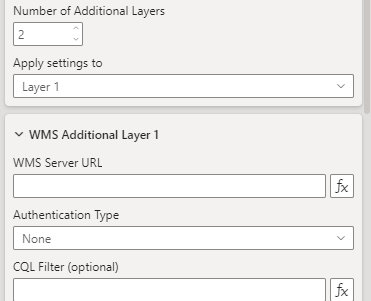

Enables the configuration of up to 4 additional WMS layers:

alt text
