Authentication

Icon Map Pro is able to connect to both ArcGIS Online and ArcGIS Enterprise**.

For ArcGIS Online, authentication via either an API Key, Username and Password or a client ID and secret with OAuth2 are supported. ArcGIS Enterprise requires OAuth2 authentication or an ArcGIS Username and Password.

API Keys and ClientID/Secret authentication types are not bound to a specific user, so there is no need for Power BI report viewers to sign into ArcGIS when viewing maps created with Icon Map Pro.

Configure Authentication in Icon Map Pro​

Before ArcGIS resources can be used, you must configure authentication. This is done from the Icon Map Pro formatting settings. Navigate to the API Keys & Authentication section, and then expand ArcGIS Authentication.

Select from the dropdown the method of authentication you wish to use:

ArcGIS Authentication Method Selection

Complete the required authentication fields using the information below. You may also change the ArcGIS portal URL if required.

Username & Password authentication​

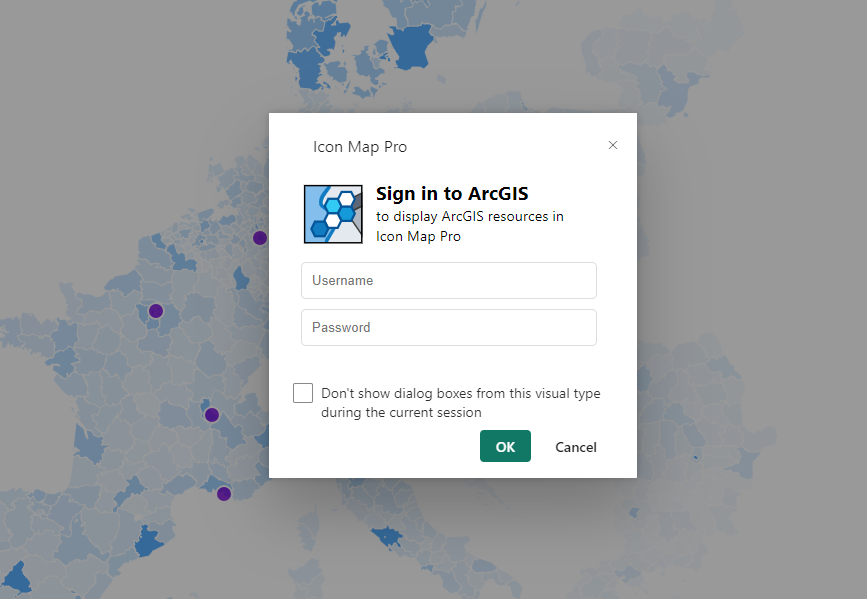

If you have selected username and password authentication, report users will require at least an ArcGIS Viewer license and be prompted to enter their ArcGIS username and password the first time they access an ArcGIS resource.

ArcGIS Login

ArcGIS returns a token to use to authenticate against all map resources. This token is stored in memory for all future requests until the report viewer navigates to a different report page, or a different report.

If local storage is enabled within your Power BI / Microsoft Fabric tenant, then the credentials are stored in your browser's local storage. The token is valid for 2 weeks, so if Icon Map Pro is able to store the token in local storage, the user should not get prompted to log in again for 2 weeks, until the token expires.

Access to local storage can be configured in the Power BI admin portal.

Creating Credentials​

ArcGIS Portal​

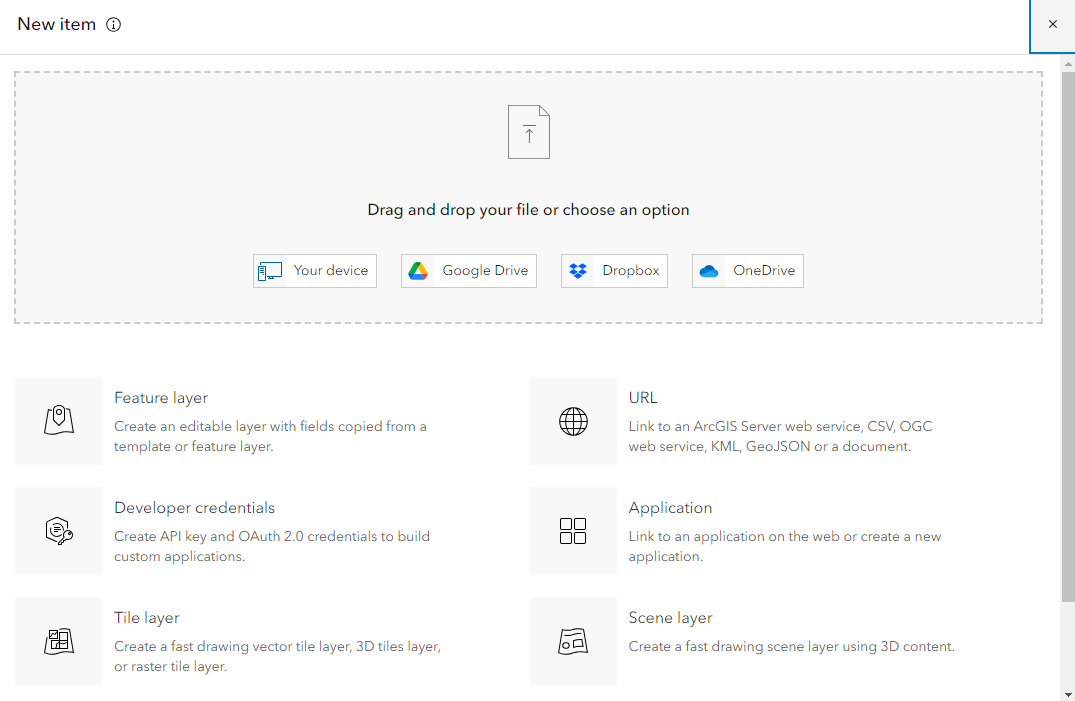

From within the ArcGIS Portal access the "Content" area and click "+ New Item" in the top left corner:

New Item

Select "Developer Credentials" from the list of options

New Item

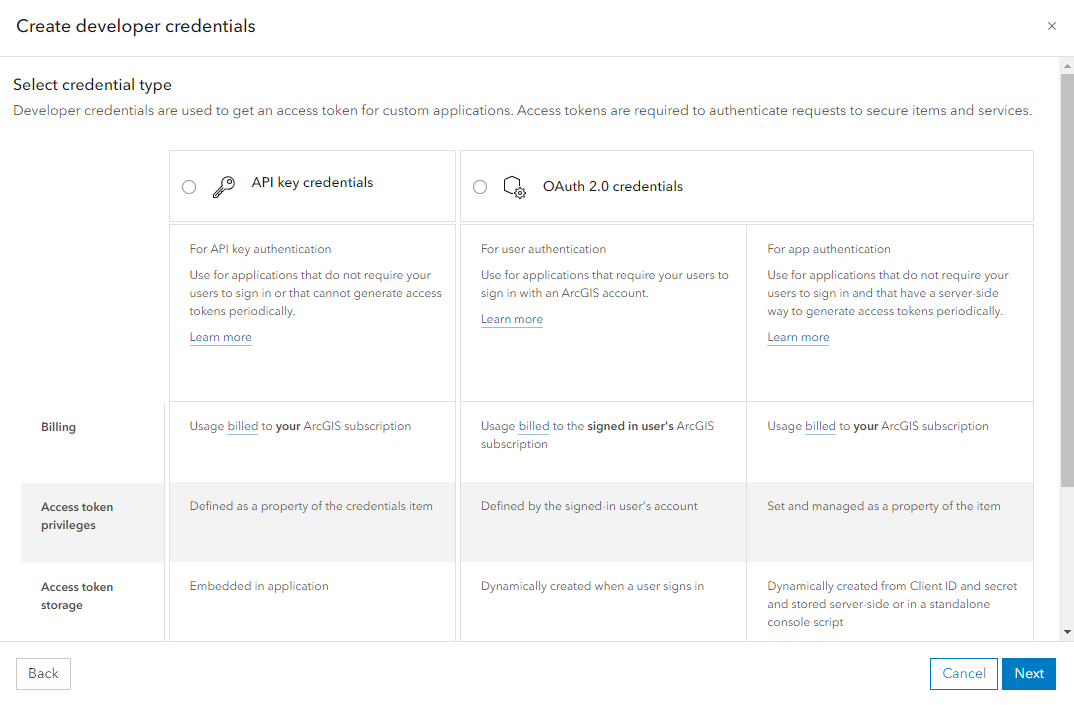

Choose to use API key credentials or OAuth 2.0 credentials:

Credentials Type

API Key​

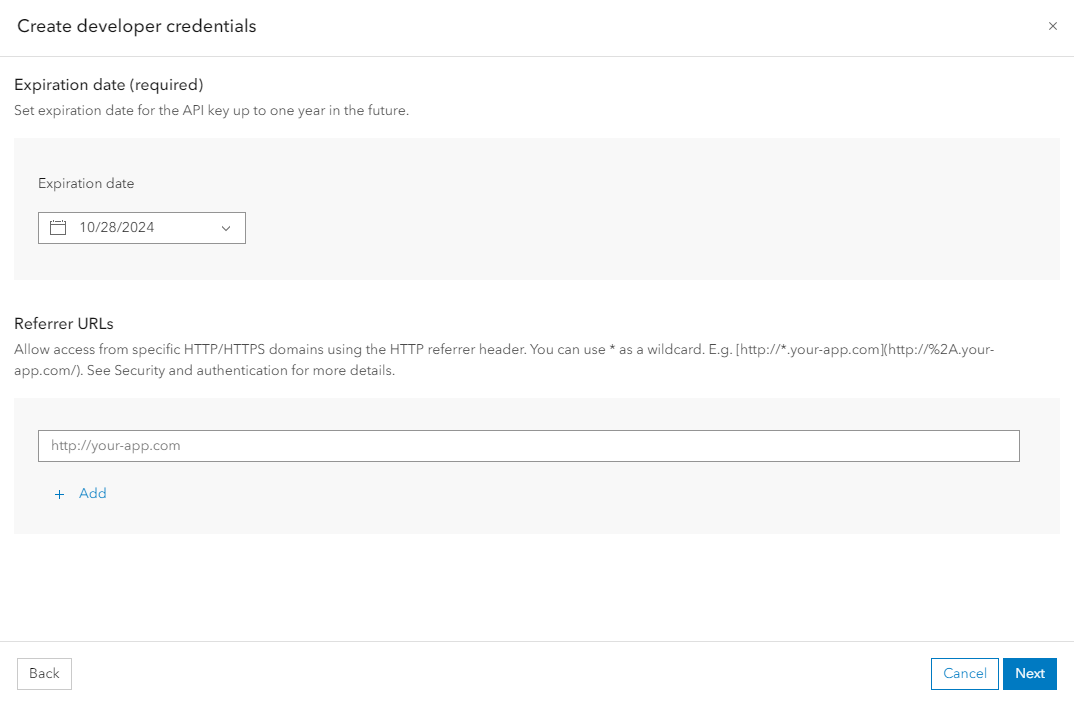

An API Key is valid for up to one year. Select an expiry data and click Next.

Expiry Date

OAuth 2.0​

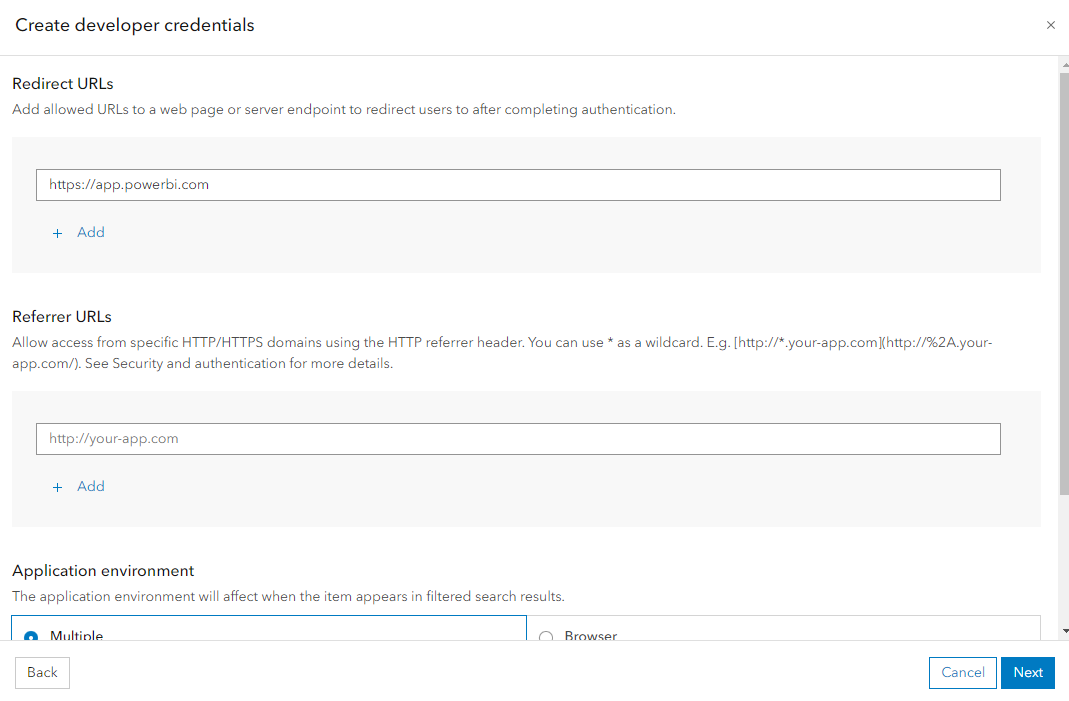

Enter https://app.powerbi.com as the redirect URL and click next.

OAuth

Assign Privileges​

It is then necessary to assign which resources Icon Map Pro will have access to.

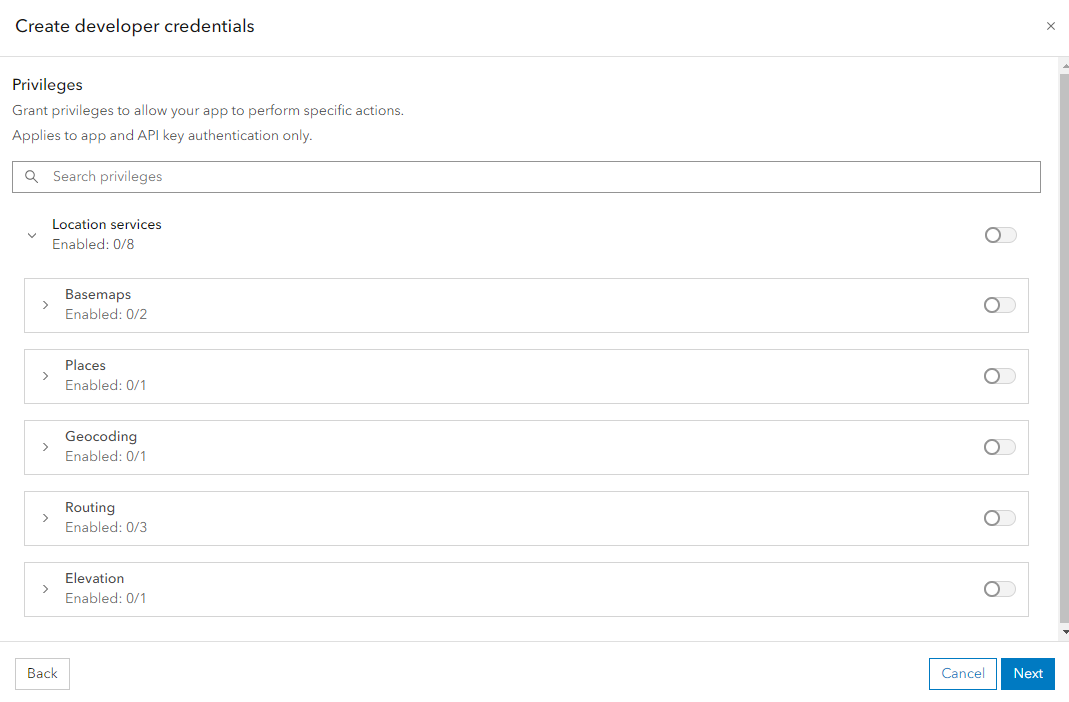

To use ArcGIS basemaps as Icon Map Pro background maps, ensure Basemaps are enabled:

Basemaps

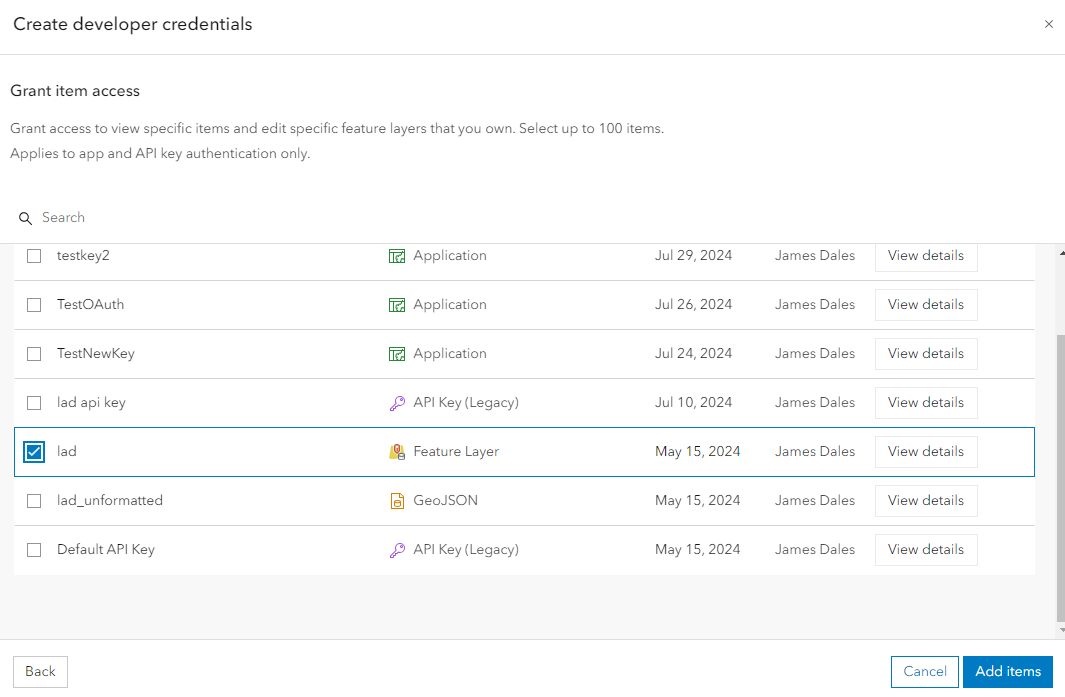

On the next screen, also ensure that any feature layers you wish to use are ticked.

Feature Layers

Click Next, then Create to complete the process.

You will then be provided with the API Key or Client ID and Client Secret.

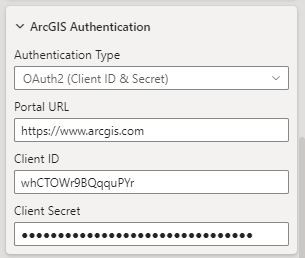

These need to be pasted within the appropriate boxes in the ArcGIS Authentication area under API Keys & Authentication in Icon Map Pro's formatting settings.

Icon Map Pro Esri Config

ArcGIS Location Platform​

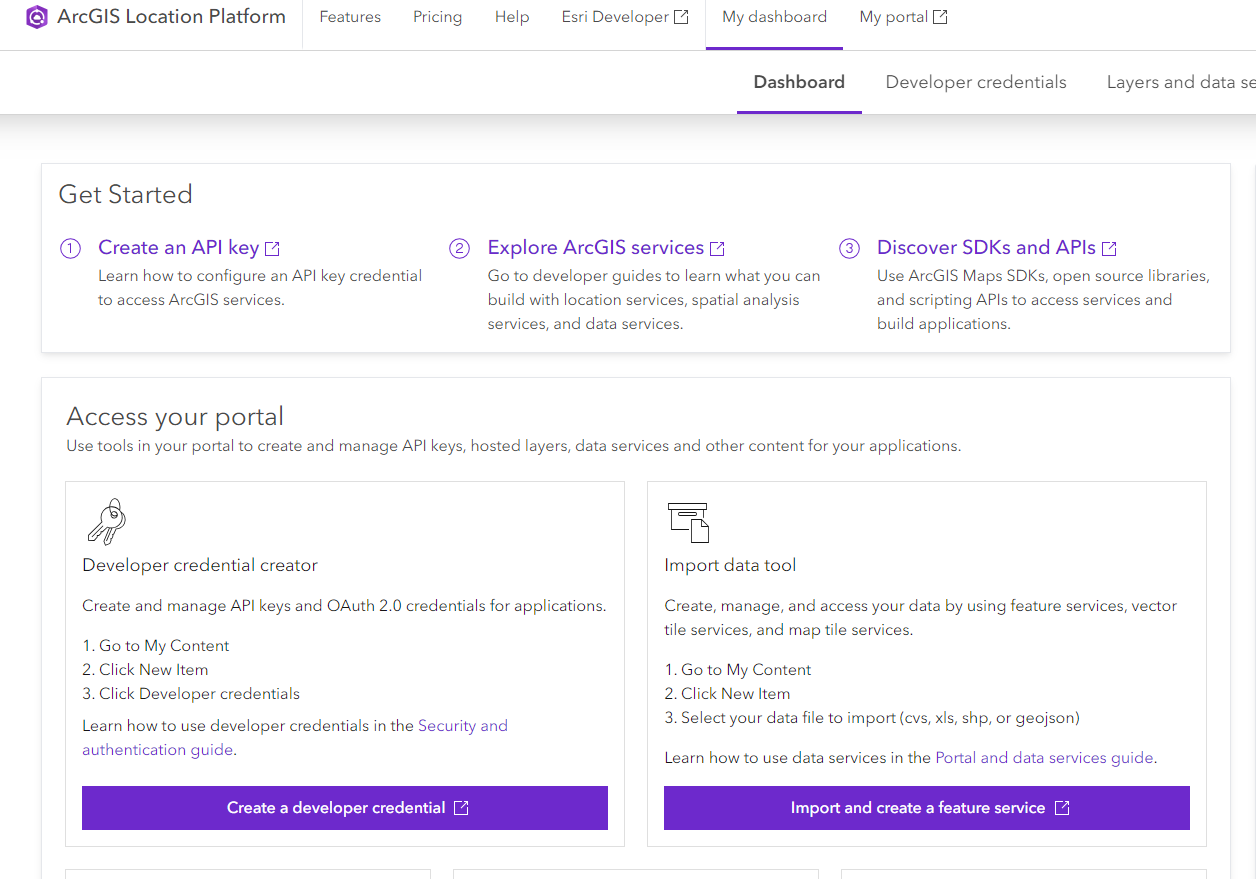

The same process can be initiated from clicking the "Create a developer credential" button from within the ArcGIS Location Platform:

Location Platform

ArcGIS Enterprise​

To use ArcGIS Enterprise, enter your ArcGIS Enterprise Portal URL in the Portal URL box in the ArcGIS Authentication settings.

The ArcGIS Enterprise portal must be accessible from the browser running the Power BI service or Power BI Embedded, or from the computer running Power BI Desktop (for report design).

** ArcGIS Enterprise connectivity currently in testing.
