Reference Labels

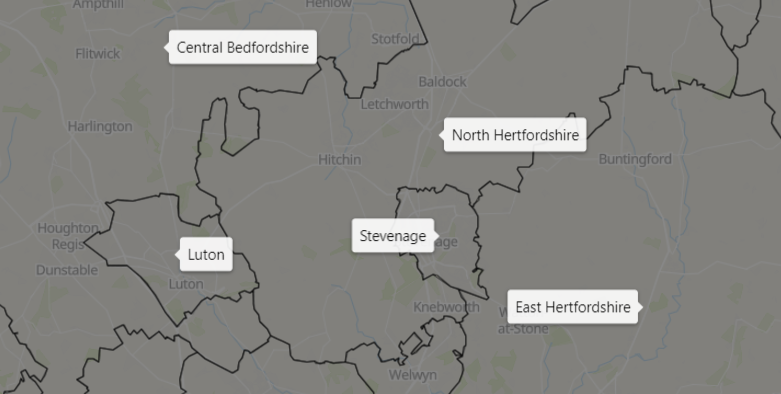

Reference labels expose one of the feature properties and displays it as text on the map. This is currently only available for Shapefiles / KML files and GeoJSON files, but will be extended to ArcGIS feature layers in future.

Reference Labels

This Reference Labels configuration options will not be displayed unless Show Labels is turned on in the appropriate overlay/reference layer.

Font and Size​

The font and size of the text in the label

Text Color​

The color of the label text

Border Color​

The color of the border and arrow symbol

Border Width​

Width of the border in pixels

Border Radius​

The border radius - increase this number to increase the curve of the corners

Fill Color​

The color of the label background

Transparency​

The transparency of the whole label

Margins​

Increase or decrease the whitespace around the text

Permanent Zoom Level​

The zoom level at which the labels permanently show on the map. When zoomed out below this level, the labels will show as a tooltip. Set to 0 to always show the labels. Set to 25 to always show as a tooltip.

Z-Index​

The order reference labels are show related to other objects. The higher the number, the nearer the foreground the labels will be.
